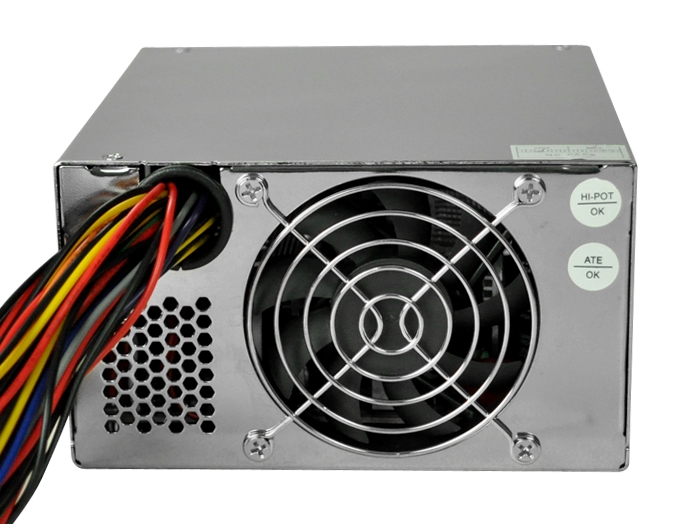

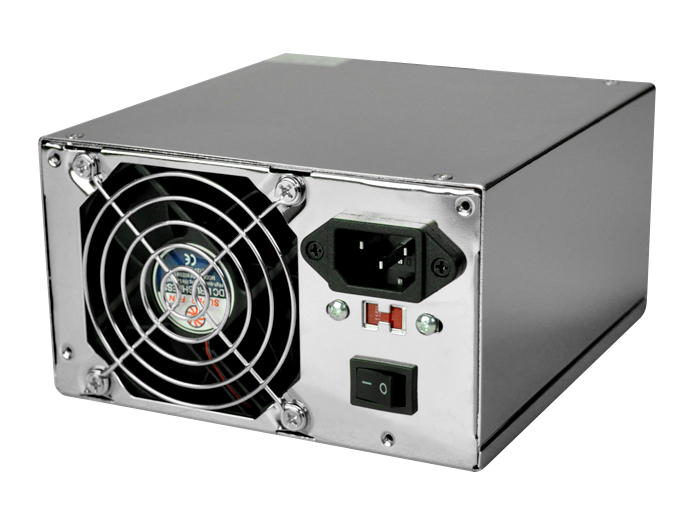

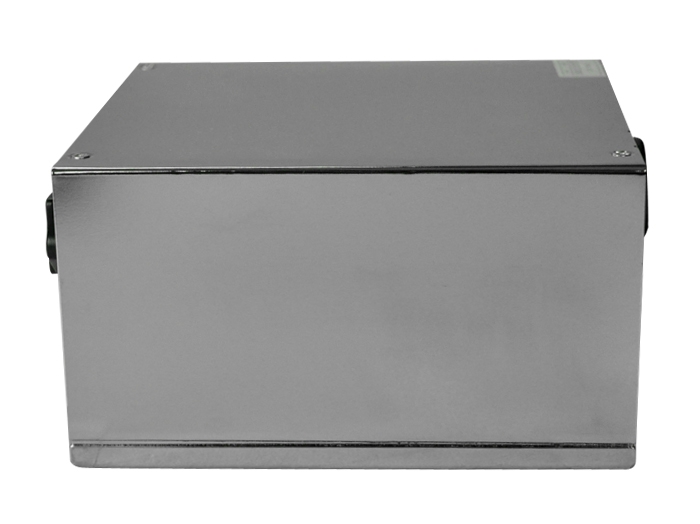

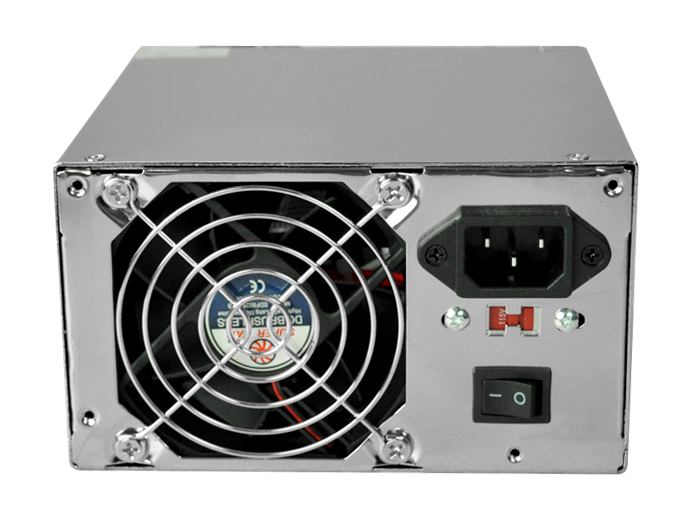

AP-P4ATX55FE - AP-P4ATX55FE
This 550 Watt power supply is for new OEM, PC, and server assemblies, including MiniServers and rackmount servers. It supports both the 20-pin and 24-pin ATX v.2.2 and EPS-12V Xeon motherboards. It also includes two PCI Express 6-pin connectors, which can supply power to two advanced graphics cards running in SLI or Crossfire configurations. With Auto switch, Active PFC and Efficiency up to 75% or more. This power supply supports Intel® Skulltrail and Core i7 platform systems.
AP-P4ATX55FE - AP-P4ATX55FE
| Model | AP-P4ATX55FE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | PS2 | ||||||||||||||
| Product Sub Category | PS2 Power Supplies | ||||||||||||||
| Output Power | 550 Watts | ||||||||||||||
| Input Votage | 115/230 Volts AC | ||||||||||||||
| Frequency | 60/50 Hz | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less than 70 ms | ||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS-12V 8 Pin x 2 PCIE 6 6 (6+2) Pin x 2 SATA 15 Pin x 4 Molex 4 Pin x 3 Floppy 4 Pin x 1 |
||||||||||||||
| Dimension | 5.75" x 3.25" x 6.25" | ||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
