Sep. 04. 2009 |
|
 |
| |
Introducing Athena Power's 250W and 300W FlexATX (AP-MFATX25, AP-MFATX30) power supply. Designed for the 1U Mini-ITX chassis, like our RM-1U102ITX, to provide compact flexibility for mini-servers.
It is also compatible with many IBM SurePOS, Shuttle XPC, and HP Pavilion systems (Mini ATX Converter Cable required for HP systems). Output connectors includes 24(20+4)pin, P4-12V 4pin, SATA II 15pin, Molex 4pin, and FDD 4pin. Features Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability. Also includes internal 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.
|
|
|
 |
 |
|
| |
|
|
| |
POWER OUTPUT SPEC |
|
| |
 |
| Voltage |
+5V |
-5V |
+12V |
-12V |
+3.3V |
+5V-SB |
| Current |
14A |
0.5A |
8A |
0.8A |
14A |
2.5A |
|
|
 |
| Voltage |
+5V |
-5V |
+12V |
-12V |
+3.3V |
+5V-SB |
| Current |
15A |
0.5A |
9A |
0.8A |
15A |
2.5A |
|
|
|
|
| |
|
|
| |
 |
80 PLUS is an innovative, electric utility-funded incentive program to integrate more energy-efficient power supplies into desktop computers and servers. FlexATX 250W, and FlexATX 300W is ready to be certifyied by 80 Plus. This ensures maximum energy efficiency by reducing energy cost now, and conserving more energy for our future. |
|
|
| |
|
|
| |
|
|
| |

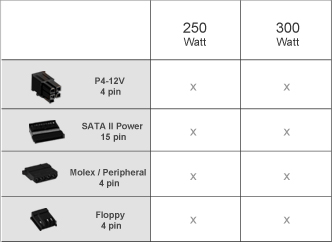

| CONNECTORS |
 |
|
| KEY FEATURES |
- High Efficiency
- Low Ripple & Noise
- Output over Voltage Protection
- Short Circuit Protection on all Outputs
- Resettable Power Shut down
- Approved by UL, CB & CE
- SATA Power Lead Ready
- FCC part 15 Subpart J Class B at 115VAC Operation & CISPR 22 Class B at 230 VAC Operation
- 100% Burn-in under High Ambient Temperature (50¢J)
- Vacuum-Impregnated Transformer
- 100% Hi-Pot Tested
|
| |
|
|
|
| |
|
|
| |
| vol.00009042009. |
|
