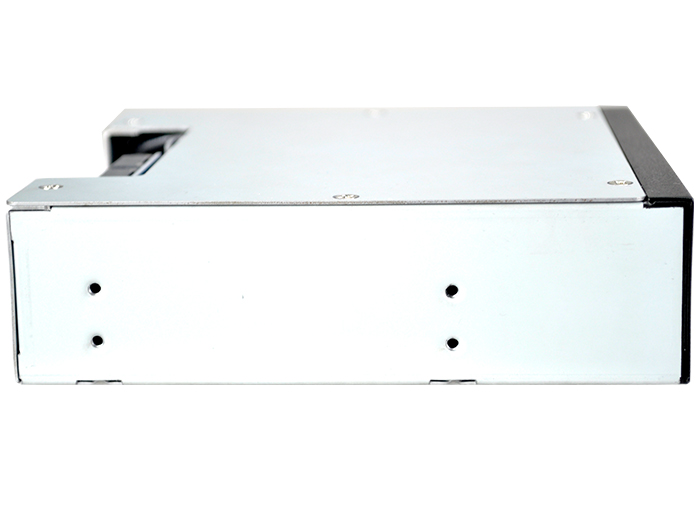

BP-1225U32SAC - BP-1225U32SAC
An Enterprise Grade Extended Module for Converting 1 x 5.25" Drive Bay to 2 x Hot-Swap 2.5"SSD/HDD and 2 x 2-Port Superspeed USB3.0
BP-1225U32SAC - BP-1225U32SAC
| Model | BP-1225U32SAC |
|---|---|
| Product Category | Internal |
| Product Sub Category | Obsidian Series (Enterprise Grade Extended Module) |
| Form Factor | 5.25" |
| Interface | SATA/SAS Interface |
| Trayless Design | No |
| Supported HDD Size |
2 x 2.5" SAS(III,II,I)/SATA(III,II,I) SSD/HDD Support Enterprise Grade 2.5" HDD (Height up to 15mm) |
| Hot-Swappable | Hot-Swappable |
| Cage Color | Silver/Black |
| Cooling Fan | None |
| Material | T=1.2mm SECC |
| Power Connector | 1 x SATA 15Pin |
| HDD Connection | 4 x SATA 7Pin (Dual Channel function) |
| Transfer Rate | up to 12Gb/s |
| RoHS Ready | RoHS Ready |
| Door & Lock | 2 x Metal Triangle Key-lock (on each of HDD tray) |
| Dimension | (W x H x D) 5-3/4 x 1-5/8 x 6 |
| Weight | 2.00lb |
| Warranty | 1 Year Manufacture Limited Warranty |
BP-1225U32SAC - BP-1225U32SAC
BP-1225U32SAC - BP-1225U32SAC
| Title | Files |
|---|---|
| User Manual |
