BP-SATA3141B - BP-SATA3141B

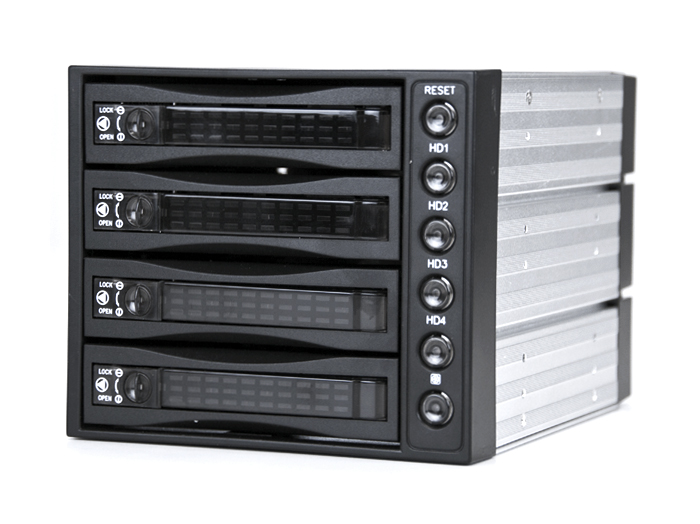

High-level Raid and high storage availability in compact design, BP-SATA3141B adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and an extra 80mm cooling fan subsystem complete a high-end data storage server or workstation. It is an ideal solution for internal server RAID and JBOD applications.
Hot-Swap 4 x 3.5" HD internal backplane SATA to SATA interface uses 3 x 5.25" bays. (Must work with SATA raid control card, not included)
BP-SATA3141B - BP-SATA3141B
| Model | BP-SATA3141B |
|---|---|
| Product Category | Discontinued Backplane & Accessories |
| Form Factor | 3 x 5.25" |
| Interface | SATA Interface |
| Plug and Play | Plug and Play |
| Trayless Design | No |
| RAID Level | 0/1/5/10 |
| HDD Max Capacity | 8TB (4 x 2TB) |
| Supported HDD Size | 4 x 3.5" |
| Hot-Swappable | Hot-Swappable |
| Cage Color | Black |
| Cooling Fan | Super Air Ventilation & Heat Sink with 80mm Fan |
| Material | All Aluminum Design with Conductive Dissipation Grooves |
| Power Connector | Molex 4 Pins or SATA 15 Pins |
| HDD Connection | SATA |
| Transfer Rate | 3Gb/s |
| RoHS Ready | RoHS Ready |
| Door & Lock | The Safety Tri-angle Lock Safeguards the Hard Drives |
| Dimension | 146mm x 126mm x 202mm |
| Weight | 6.00lb |
| Warranty | 1 Year Manufacture Limited Warranty |
BP-SATA3141B - BP-SATA3141B
BP-SATA3141B - BP-SATA3141B
| BP-SATATRAYB | Individual Back Plane Unit Internal SATA Tray |
