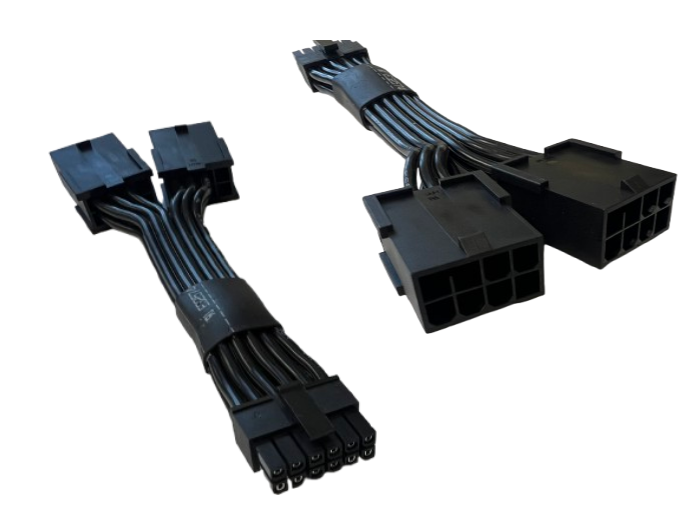

CABLE-PCIE531-8216 – Dual PCIe 6+2 Pin to PCIe 5.0 (12VHPWR) Power Cable, 85mm

The CABLE-PCIE531-8216 is a compact, high-performance GPU power cable designed for next-generation PCIe 5.0 graphics cards. Featuring two PCIe 6+2 pin connectors to a single 12VHPWR (600W) interface, this short 85mm adapter delivers stable high-current power for NVIDIA RTX and other PCIe Gen5 GPUs.

Built with 16AWG stranded copper conductors and UL-recognized materials, it provides efficient power delivery with low resistance and minimal heat generation. The short cable length improves airflow and reduces clutter in tight PC, workstation, and server builds, while reinforced latches ensure secure, reliable connections.

• Connector Type: Dual PCIe 6+2 pin (male) to PCIe 5.0 (12VHPWR)

• Length: 85mm (±5mm)

• Wire Gauge: 16AWG stranded copper

• Applications: High-performance GPUs, compact PCs, workstations, and server GPU upgrades

• Features: 600W rated, UL & VW-1 flame compliant, short design for efficient cabling

Ideal for GPU-intensive systems where space and thermal efficiency are critical.
