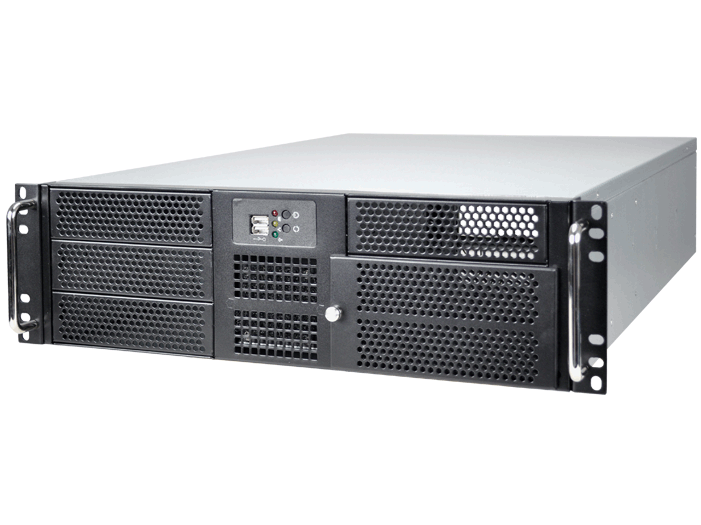

Athena Power RM-3U3164 is a newly designed 19-inch standard rack mount 3U chassis. This chassis supports a motherboard form factor from mini-ITX (6.7” x 6.7”) to E-ATX (12” x 13”), and it features 7 full-height expansion slots.
RM-3U3164 chassis supports an Athena Power 3U single IPC, 2U single IPC or 2U micro redundant CRPS power supply unit. It also features up to 6 external 5.25” drive bay and 4 internal 2.5” drive bay.

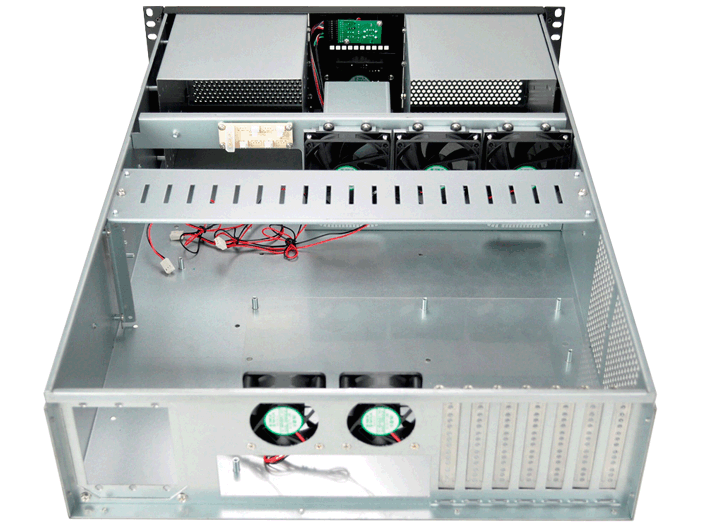

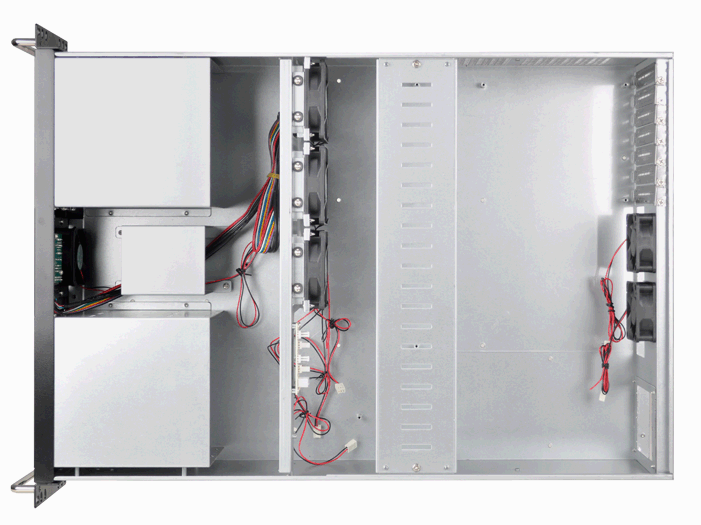

This 3U rack mount chassis chamber is made by 1.2mm SGCC material; front bezel is made by SECC with hexagon vent-hole and black coating. For better thermal solution, RM-3U3064 features 1x 60mm fan at front, 3x 80mm fan at center and 2x 60mm fan at rear. Furthermore, the center 80mm fans are featured hot-swappable brackets with anti-vibration rubbers, for easy maintain system and prevent vibration damage.
Main Features:
- Support motherboard up to E-ATX (12” x 13”);
- Support an Athena Power 3U single PSU, 2U single PSU or 2U micro redundant CRPS;
- Up to 6x 5.25” external drive bay;
- Up to 4x 2.5” internal drive bay;
- 7x full-height expansion slots;

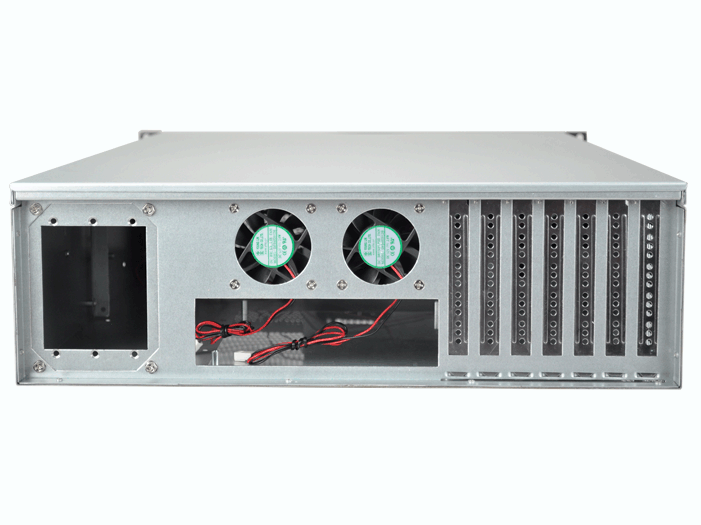

- 1x 60mm fan at front (with dustproof filter), 3x 80mm fan at center (with anti-vibration hot-swap bracket) and 2x 60mm fan at rear;
- 1.2mm SGCC chassis chamber; 1.2mm SECC front bezel with hexagon vent-holes and black paint.
RM-3U3164 - RM-3U3164
Model | RM-3U3164 |
---|---|
Product Category | 3U Rackmount |
Form Factor | 3U |
Cage Color | Silver/Black |
Specifications | 19" Rackmount standard |
MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) E-ATX (12 in. x 13 in.) Mini-ITX (6.7 in. x 6.7 in.) |
Air Filter | None |
Drive Bay |
(External) 5.25" x 6 (Internal) 2.5" x 4 |
Switch |
Power On/Off Reset |
Power Supply |
3U Single 2U Single 2U Micro Redundant |
Cooling Fan |
1x 60mm @Front 3x 80mm @ Center 2x 60mm @ Rear |
Ports | 1x Front 2-Port USB2.0A |
Indicators | (LED) Power; HDD |
Expansion Slot | Full-Height x7 |
Material | 1.2mm SGCC |
Dimension | (L x W x H) 645 x 430 x 133 mm / 25.40" x 17" x 5.25" |
Weight | 30.00lb |
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | (W x L x H) |
---|
RM-3U3164 - RM-3U3164
RM-3U3164 - RM-3U3164
Components |
---|
AP-U3ATX65FEP8 (Power Supply | 3U) |
Components |
---|
AP-U3ATX80FEP8 (Power Supply | 3U) |
Components |
---|
AP-RRU2ATX808 (Power Supply | Redundant) |
