Athena Power RM-3UWIN525 is a standard 19-in rack mountabl 3U height server chassis with the following features:
- Motherboard Supported: From standard mini-ITX (6.7"x6.7") up to ATX (12"x9.6")
- Power Supply Supported: A PS2 Single or PS3 Singlt power supply at chassis front
- External 5.25" Drive Bay Supported: Up to 4
- Internal 3.5" Drive Bay Supported: Up to 6 (or Up to 2 Internal 2.5"HDD)

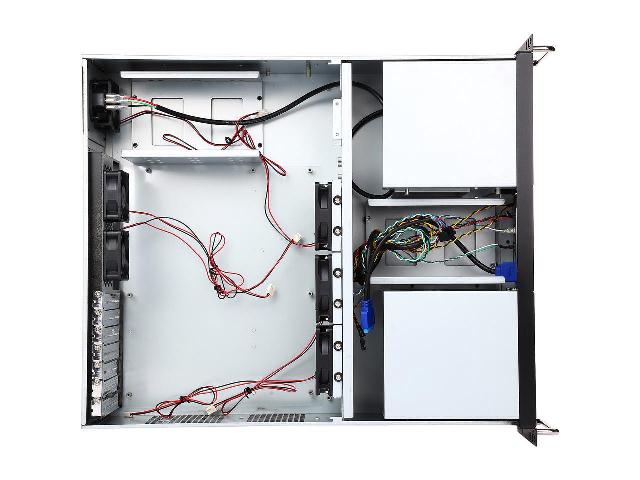

- Cooling Fan: 80mm x 3 (Center). 60mm x 3 (Optional; Rear)

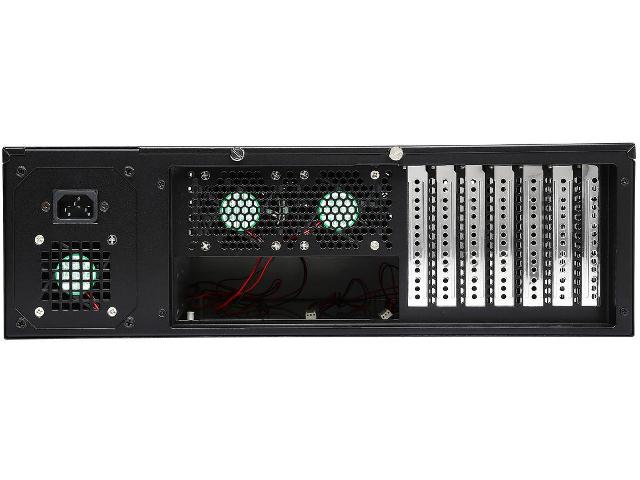

- Expansions Slot: Full-Height x 7
- Front Control Panel Supported: 2-Port USB3.0 Type-A, LED Indicators (HDD/POWER/LAN1/LAN2), Momentary Power On & Reset Switches.
RM-3UWIN525 - RM-3UWIN525
Model | RM-3UWIN525 |
---|---|
Product Category | 3U Rackmount |
Form Factor | 2U |
Cage Color | Black |
Specifications | 19" Rackmount standard |
MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX (6.7 in. x 6.7 in.) |
Air Filter | None |
Drive Bay |
4 x External 5.25" Up to 6 Internal 3.5" |
Switch |
Power On/Off Reset |
Power Supply |
PS2 Single @ Front PS3 Single @ Front |
Cooling Fan |
3x 80mm @ Center (w/ easy-install & anti-vibration bracket) (Optional: 3x 60mm @ Rear) |
Ports | 1 x Front 2-Port USB3.0A |
Indicators | (LED) POWER / HDD / LAN1 / LAN2 |
Expansion Slot | Full-Height x7 |
Material | T=1.2mm SECC |
Dimension | (D x W x H) 525.1 x 435 x 133 (mm) / 20.67 x 17.13 x 5.24 (inch) |
Weight | 30.00lb |
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 22.6"/57.5cm x 26.2"/66.5cm x 10.4"/26.3cm (W x L x H) |
---|---|
Master Box Weight | 33.00 lbs |
Package Quantity | 1 /Box |
RM-3UWIN525 - RM-3UWIN525
RM-3UWIN525 - RM-3UWIN525
Components |
---|
AP-P4ATX70FEP8 (Power Supply | PS2) |
