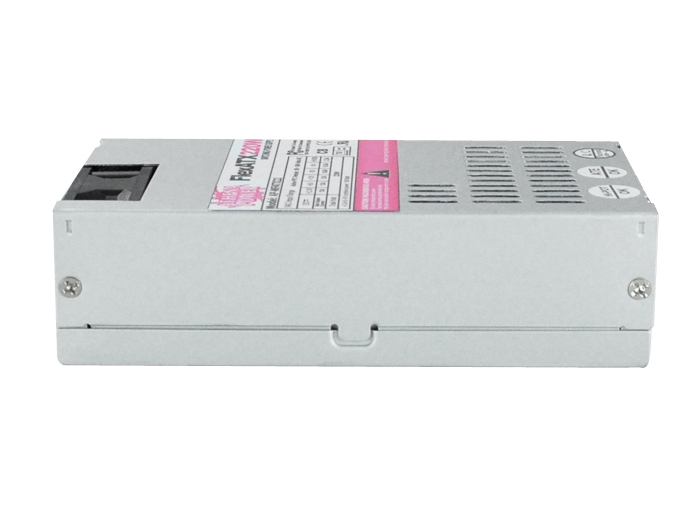

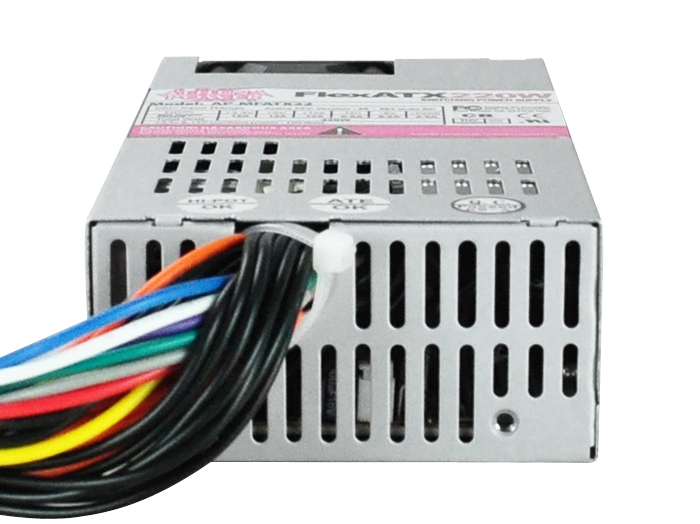

AP-MFATX22P - AP-MFATX22P
Athena Computer Power is proud to introduce the new FLEX ATX power supply series. With smaller computers in demand the FLEX form factor is becoming a necessity for Mini-ITX and 1UITX computers. The first of its class this PSU's 220 Watts of power can be used for small media and Data Processing systems, it also comes with additional features such as Active PFC and the Remote ON/OFF feature.
A Perfect Fit
Like its name the FLEX ATX is a compact and flexible Power Supply. Designed for 1UITX rackmounts, Mini-ITX chassis’, or as a replacement PSU for IBM SurePOS, Shuttle XPC, and HP Pavillion systems; its flexibility can be used to build small media servers, supply power for all types of kiosks and can even be used for small business servers.
Smart Auto Fan Speed Controller
With its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels of the PSU it will adjust the fan speed accordingly, with this feature built in, worrying about the heat level of a PSU becomes almost non-existent.
AP-MFATX22P - AP-MFATX22P
| Model | AP-MFATX22P | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | Flex ATX | ||||||||||||||||
| Product Sub Category | FLEX ATX | ||||||||||||||||
| Output Power | 220 Watts | ||||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||||
| Temperature Range | Operating 0° C ~ +25° C on 250W Output Load or 0° C ~ +50° C on 220W Output Load ; Storage & Shipping -20° C ~ +80° C | ||||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||
| Rise time | Less than 20 ms | ||||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||
| Output |
|
||||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 SATA 15 Pin x 2 Molex 4 Pin x 2 Floppy 4 Pin x 1 |
||||||||||||||||
| Supported Product | RM-1U102ITX | ||||||||||||||||
| Dimension | 3.2" x 1.7" x 6" | ||||||||||||||||
| Weight | 2.00lb | ||||||||||||||||
| Warranty | 1 Year Warranty |
