AP-MFATX40P8 - AP-MFATX40P8

Athena Computer Power is proud to introduce the new FLEX ATX power supply series. With smaller computers in demand the FLEX form factor is becoming a necessity for Mini-ITX and 1UITX computers. Not only does the FLEX Hone 400 Watts of power in this compact PSU but it also comes with additional features such as Active PFC and the Remote ON/OFF feature.
A Perfect Fit
Like its name the FLEX ATX is a compact and flexible Power Supply. Designed for 1UITX rackmounts, Mini-ITX chassis’, or as a replacement PSU for IBM SurePOS, Shuttle XPC, and HP Pavillion systems; its flexibility can be used to build small media servers, supply power for all types of kiosks and can even be used for small business servers.
Smart Auto Fan Speed Controller
With its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels of the PSU it will adjust the fan speed accordingly, with this feature built in, worrying about the heat level of a PSU becomes almost non-existent.
80PLUS Certification
Saving energy has become an important factor when choosing the correct power supply and what shows more efficiency than having an 80PLUS Bronze Certification. The FLEX 400W is one of the latest Flex ATX PSU’s that brandishes this certification. Providing efficiency during max and low loads this PSU lives up to the standards of today’s world.
AP-MFATX40P8 - AP-MFATX40P8

| Model | AP-MFATX40P8 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | Flex ATX | ||||||||||||||||
| Output Power | 400 Watts | ||||||||||||||||
| Input Votage | 88/264 Volts AC | ||||||||||||||||
| Frequency | 60/50 Hz | ||||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||
| Output |
|
||||||||||||||||

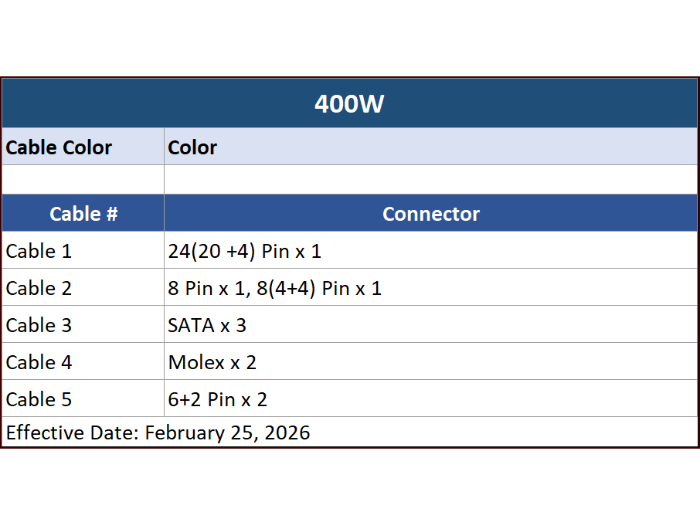

| Connectors |
ATX Connector 24(20+4) pin x 1 EPS-12V 8 (P4-12V 4 pin +4) pin x 1 EPS/P4 (P4+4) pin x 1 PCIE 6 pin x 2 SATA 15 pin x 3 Molex 4 pin x 2 Floppy 4 pin x 1 |
||||||||||||||||
| Dimension | ( W x H x D ) 3.2" x 1.7" x 6" | ||||||||||||||||
| Weight | 2.00lb | ||||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
