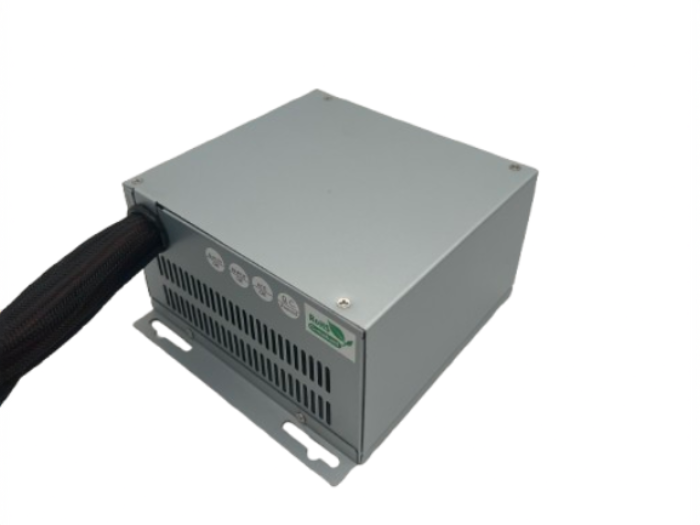

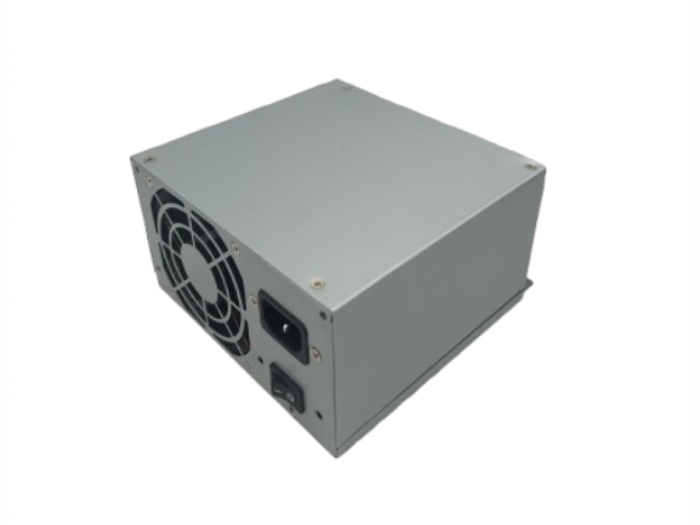

Athena Power AP-PS3265P868 – 650W PS2 Power Supply
Reliable, efficient, and ready for next-generation systems, the AP-PS3265P868 is a high-performance power supply designed for industrial and workstation applications. With a compact PS2 form factor, a single cooling fan, and a P5 connector for PCIe 5.0, it delivers stable power while supporting modern components. Certified to IEC/UL 62368-1 and meeting 80 PLUS Platinum efficiency standards, it ensures both safety and energy savings.
Why Choose AP-PS3265P868:
-
Powerful & Efficient: Up to 650W output with 80 PLUS Platinum efficiency
-
Next-Gen Ready: P5 connector for PCIe 5.0 compatibility
-
Reliable & Durable: Stable performance in extended temperature ranges
-
Compact & Easy to Integrate: Standard PS2 form factor (5.5" depth) with a single cooling fan
-
Safety Certified: IEC/UL 62368-1 compliant for industry-standard protection
AP-PS3265P868 - AP-PS3265P868
| Model | AP-PS3265P868 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | PS2 | ||||||||||||
| Product Sub Category | PS2 Power Supplies | ||||||||||||
| Output Power | 650 Watts | ||||||||||||
| Input Votage | 100 ~ 264 Volts AC | ||||||||||||
| Frequency | 47/63 Hz | ||||||||||||
| Temperature Range | Operating: 0°C ~ +40°C on Full Load; Storage & Shipping: -25°C ~ +85°C | ||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||
| Rise time | Less than 20 ms | ||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||
| Output |
|
||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1 EPS 12V 8 Pin x 1, 8(4x4) Pin x 1 PCIE 6+2 Pin x 2 SATA 15 Pin x 3 Molex 4 Pin x 2, Floppy 4 Pin x 1 |
||||||||||||
| Dimension | (D x W x H) 140 x 150 x 85 mm / 5.5 x 5.9 x 3.4 in | ||||||||||||
| Weight | 4.50lb | ||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
