Athena Power AP-PS3280P868 – 800W PS2 Power Supply
Reliable, efficient, and next-generation ready, the AP-PS3280P868 delivers up to 800W of stable power in a compact PS2 form factor (5.5" depth) with a single cooling fan. Designed for industrial and workstation systems, it supports PCIe 5.0 via P5 connector and meets 80 PLUS Platinum efficiency standards for energy savings. IEC/UL 62368-1 certified, it ensures safe and long-term performance for critical applications.
Why Choose AP-PS3280P868:
-
Power & Efficiency: 800W output with 80 PLUS Platinum certification
-
Next-Gen Ready: P5 connector for PCIe 5.0 compatibility
-
Compact & Reliable: Standard PS2 form factor with a single fan for efficient cooling
-
Safety Certified: Meets IEC/UL 62368-1 standards for industry-standard protection
AP-PS3280P868 - AP-PS3280P868
| Model | AP-PS3280P868 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | PS2 | ||||||||||||
| Product Sub Category | PS2 Power Supplies | ||||||||||||
| Output Power | 650 Watts | ||||||||||||
| Input Votage | 100 ~ 264 Volts AC | ||||||||||||
| Frequency | 47/63 Hz | ||||||||||||
| Temperature Range | Operating: 0°C ~ +40°C on Full Load; Storage & Shipping: -25°C ~ +85°C | ||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||
| Rise time | Less than 20 ms | ||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||
| Output |
|
||||||||||||
| Connectors |

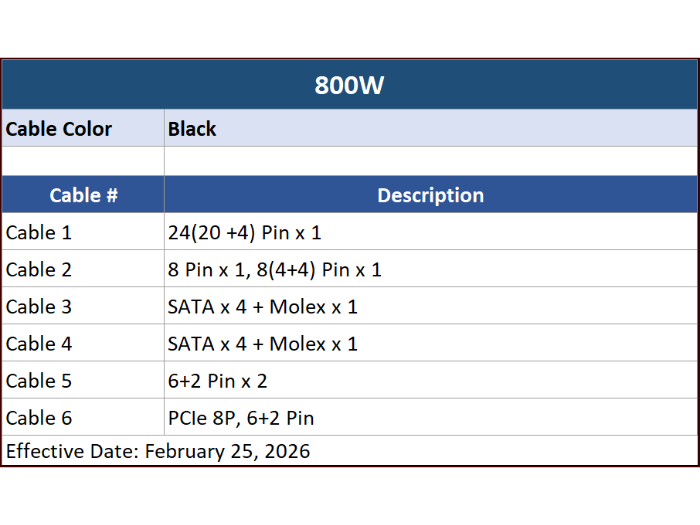

ATX Connector 24 (20+4) Pin x 1 EPS 12V 8 Pin x 1, 8(4x4) Pin x 1 PCIE 6+2 Pin x 3, 8 Pin x 1 SATA 15 Pin x 3 Molex 4 Pin x 1 Converter P5 16(12+4) Pin for PCIe 5.0 |
||||||||||||
| Dimension | (D x W x H) 140 x 150 x 85 mm / 5.5 x 5.9 x 3.4 in | ||||||||||||
| Weight | 4.50lb | ||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
