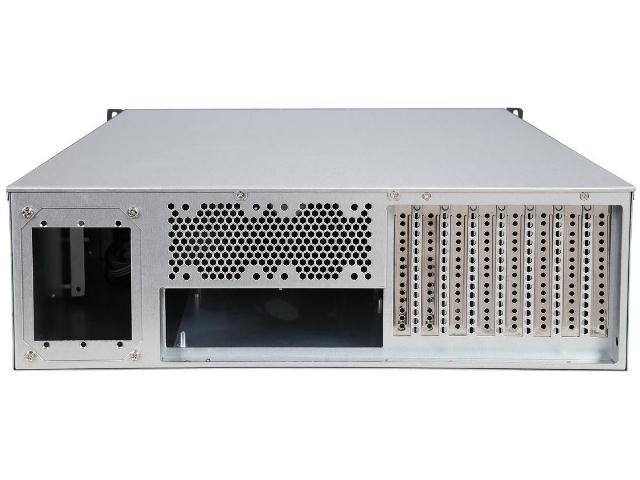

Athena Power RM-3UG3164HE12 GPU Server 12Gb/s 16-Port Mini-SAS Rackmount Storage Chassis is specially designed for GPU server applications; features 8 full-height PCI expansion slots and the add-in card length could be up to 13". This chassis is a 3U form factor IPC enclosure and compitable with the standard 19-inch rack. Furthermore, it features an IPC grade 12Gb/s 16-Port mini-SAS HD (4 x Internal SFF-8643) backplane module.
RM-3UG3164HE12 - RM-3UG3164HE12
| Model | RM-3UG3164HE12 |
|---|---|
| Product Category | GPU Server & Storage Rackmount Chassis |
| Product Sub Category | 3U |
| Cage Color | Black |
| Specifications | 19" Rackmount standard |
| MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) E-ATX (12 in. x 13 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Drive Bay |

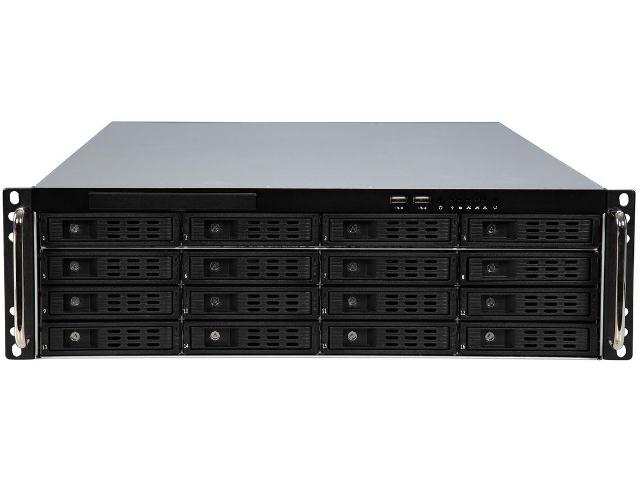

External: 16 x Hot-Swap 3.5"/2.5"HDD 12Gb/s mini-SAS Backplane Module (IPC Grade) External: 1 x Slim Optical Drive Bay Internal: 2 x 2.5" HDD Drive Bay |
| Switch |
Power On/Off Reset |
| Power Supply |
Athena Power 2U Micro Redundant (550W~800W) Athena Power 3U Single IPC (600W~800W) Athena Power 2U Single IPC (350W~800W) |

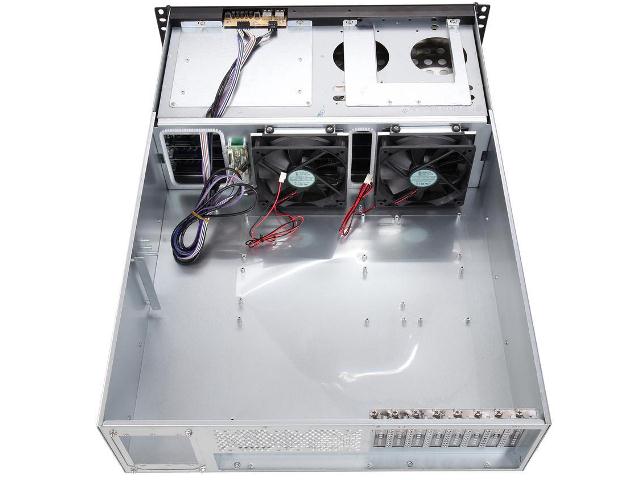

| Cooling Fan | 2 x 120mm DC Cooling Fans |
| Ports | Front: 2 x USB2.0 Type-A |
| Indicators | POWER/ HDD/ LAN1 / LAN2/ WARNING |
| Material | SGCC (T=1.2mm) |
| Dimension | L 25" x W 17-5/16" x H 5-1/4" |
| Warranty | 1 Year Manufacture Limited Warranty |
RM-3UG3164HE12 - RM-3UG3164HE12
RM-3UG3164HE12 - RM-3UG3164HE12
| RM-SLIDER26 | 2U-4U 26" length Slider Rail. This is a full-travel 3-sections Solid-Bearing Slider Rail. Lock open and quick release latch for easy chassis removal. |
| 20" Internal Mini-SAS HD Cable (SFF-8643 to SFF-8643) | Athena Power CABLE-MS8643INT20 is a 20" long internal mini-SAS HD 12Gb/s cable used for connecting a 12Gb/s host bus controller (SFF-8643) to a 12Gb/s mini-SAS HD (SFF-8643) internal backplane/... |
| 20" Internal Mini-SAS HD Reverse Breakout Cable (1x SFF-8643 to 4x SATA) | Athena Power CABLE-MS86434SRB20 is a 20" long internal mini-SAS HD to SATA Reverse Breakout cable used for connecting a host-controller or M/B with 4 SATA 7Pin connectors to a 12Gb/s mini-... |
