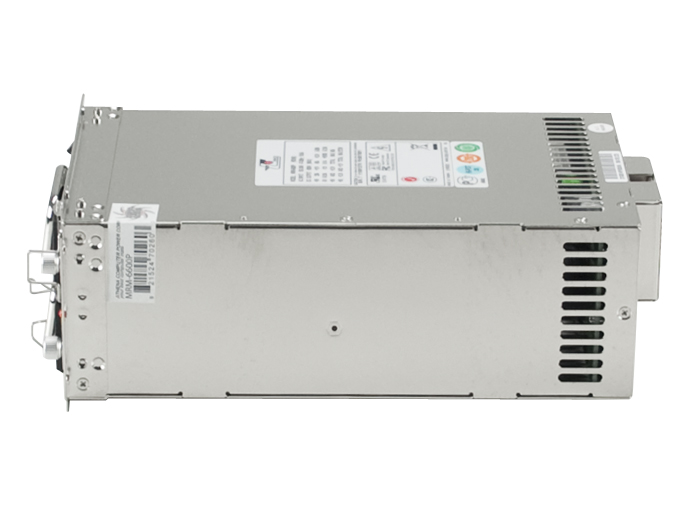

MRM-6600P - MRM-6600P
OUTPUT WATTAGE
- 600W
BEST SOLUTION FOR
- Server ,Workstation ,Storage System ,Communication ,Networking
DIMENSION
- 254x150x84(mm)
- 10x5.91x3.31(inch)
INPUT SPEC
- VOLTAGE: 90 ~ 264 VAC FULL RANGE
- FREQUENCY : 47 ~ 63 Hz
- INPUT CURRENT: 10 / 5 A FOR 115 / 230 VAC
- INRUSH CURRENT: 80A / 150A MAX. FOR 115 / 230 VAC PER POWER MODULE
FEATURES
- TEMPERATURE RANGE : OPERATING OPERATING: 0℃ --50℃; STORAGE: -20℃ --- 80℃
- HUMIDITY:OPERATING:20%-80%, NON-OPERATING:10%-90%
- HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & 90 VAC INPUT VOLTAGE
- DIELECTRIC WITHSTAND: INPUT / OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
- EFFICIENCY: 68% TYPICAL, AT FULL LOAD
- POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
- OVER LOAD PROTECTION: 110 ~ 150% MAX.
- OVER VOLTAGE PROTECTION: +5V -> 5.7V ~ 6.5V, 3.3V -> 3.9V ~ 4.5V, 12V -> 13.3V~ 14.5V
- OVER CURRENT PROTECTION : 5V, 12V, 3.3V 130% +/- 20% AT FULL LOAD; -5V, -12V SHORT CIRCUIT
- EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
- SAFETY: MEET UL 60950, CSA 22.2 NO/ 60950, TÜV IEC 60950
- REMOTE ON / OFF CONTROL
- FAULTY ALARM METHODS : LED, BUZZER, TTL SIGNAL
- HOT-SWAPPABLE / HOT-PLUGGABLE REDUNDANCY FUNCTION
- BALANCE LOAD SHARING DESIGN
- REMOTE SENSING DESIGN
- ISOLATION: BUILT-IN IN THE POWER MODULE
- MEET IEC-1000-3-2 CLASS D ( ACTIVE PFC )
*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
MRM-6600P - MRM-6600P
| Model | MRM-6600P | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | MINI REDUNDANT | ||||||||||||||
| Output Power | 600 Watts | ||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||
| Temperature Range | OPERATING: 0℃ ~ 50℃; STORAGE: -20℃ ~ 80℃ | ||||||||||||||
| Hold-up Time | 16 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Dimension | (LxWxH) 254x150x84(mm); 10.00x5.91x3.31(inch) |
